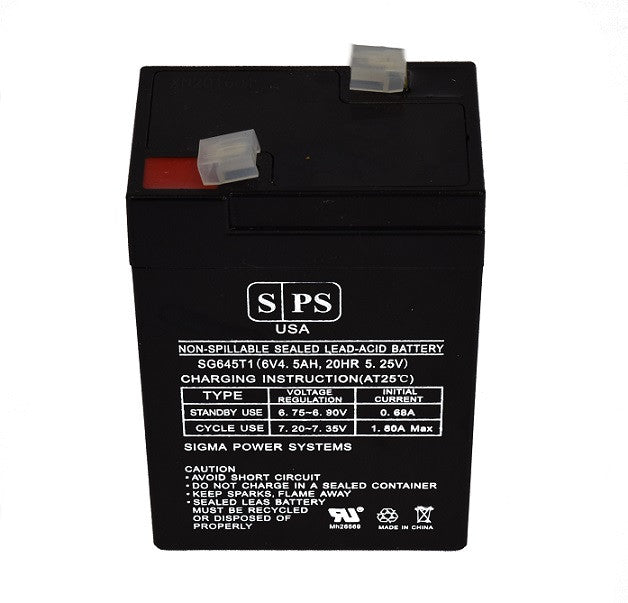

Lithonia LX ELN Battery from Sigma Power Systems.
- Lithonia LX ELN Battery is a rechargeable sealed lead acid (SLA) with Absorbed Glass Mat (AGM) technology with T1 (also called F1) terminals.
- Lithonia LX ELN Battery is from Sigma Power Systems with part no SG0645T1.
- Lithonia LX ELN Battery have 5 year design life at 77 F and the life varies depending upon the use and termperature of operation.
- Spent Lithonia LX ELN Battery have to disposed properly as per local and Federal Regulations.
- For technical details of Lithonia LX ELN Battery click on the data sheet link below.
- For safe handling ofLithonia LX ELN Battery click the Safety Instructions below.
- Lithonia LX ELN Battery life can be improved by following the tips given under General Tips for Longer Life link.
Specifications:
| Nominal Voltage: | 6 V | Capacity (20 hr rate): | 4.5Ah | |
| Chemistry: | Lead Acid | Technology: | SLA | |
| Color: | Black | Terminals: | T2 | |
| Charge Voltage (Cycle use) | 7.0-7.2 V | Length: | 2.76 inches | |
| Charge Voltage (Standby use) | 6.5.0-6.7 V | Width: | 1.85 inches | |
| Maximum Charge Current | 1.5 A | Height: | 4.17 inches | |
| Warranty | 1 year | Weight: | 1.69 lbs | |
| Case Qty | 20 | Safety Listing: | UL |
