Drive Medical Design Phantom MKB-ES12-12

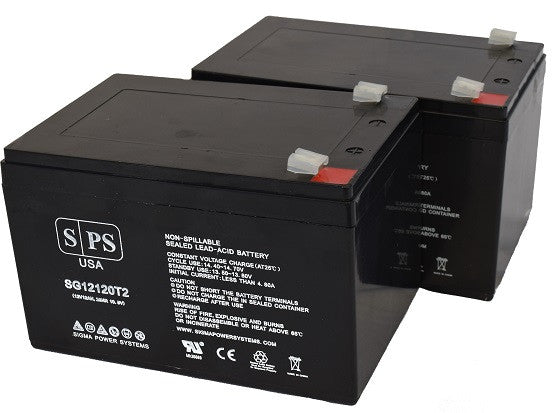

- Drive Medical Design Phantom MKB-ES12-12 comes with TWO 12V 12Ah VOLTAGE MATCHED batteries with T2 terminals
- Drive Medical Design Phantom MKB-ES12-12 supplied by Sigma Batteries is from Sigma Power Systems with Model No. SG12120T2.
- Drive Medical Design Phantom MKB-ES12-12 has one year warranty when used under normal conditions.
- Spent Drive Medical Design Phantom MKB-ES12-12 have to disposed properly as per local and Federal Regulations.
- For technical details on Drive Medical Design Phantom MKB-ES12-12 click the data sheet link below.
- For safe handling of Drive Medical Design Phantom MKB-ES12-12 Click on the safety instructions below.
- Life of Drive Medical Design Phantom MKB-ES12-12 can be improved by following the tips given under General Tips for longer life.
|Nominal Voltage:||12 V||Capacity (20 hr rate):||12Ah|
|Charge Voltage (Cycle use)||14.0-14.4 V||Length:||5.95 inches|
|Charge Voltage (Standby use)||13.0-13.4 V||Width:||3.86 inches|
|Maximum Charge Current||4 A||Height:||3.98 inches|
|Warranty||1 year||Weight:||8.16 lbs|
|Case Qty||2||Safety Listing:||UL|
