APC Smart SU24XLBP UPS Battery set

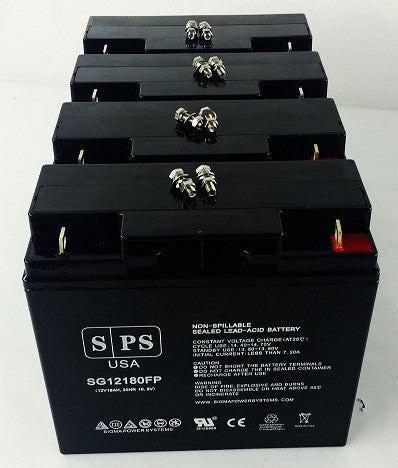

- APC Smart SU24XLBP UPS Battery set comes with FOUR VOLTAGE MATCHED 12V 18Ah with FP terminals and eight sets of bolts and nuts and four regular washers and two spring washers for each battery.
- APC Smart SU24XLBP UPS Battery set supplied by Sigma Batteries is from Sigma Power Systems with Model No. SG12180FP.
- APC Smart SU24XLBP UPS Battery set has one year warranty when used under normal conditions.
- Spent APC Smart SU24XLBP UPS Battery set have to disposed properly as per local and Federal Regulations.
- For technical details on APC Smart SU24XLBP UPS Battery set click the data sheet link below.
- For safe handling of APC Smart SU24XLBP UPS Battery set Click on the safety instructions below.
- Life of APC Smart SU24XLBP UPS Battery set can be improved by following the tips given under General Tips for longer life.
|Nominal Voltage:||12 V||Capacity (20 hr rate):||18Ah|
|Charge Voltage (Cycle use)||14.0-14.4 V||Length:||7.13 inches|
|Charge Voltage (Standby use)||13.0-13.4 V||Width:||3.01 inches|
|Maximum Charge Current||6 A||Height:||6.57 inches|
|Warranty||1 year||Weight:||12 lbs|
|Case Qty||2||Safety Listing:||UL|
Other related useful pdf documents:
|Data Sheet for SG12180FP||Materials Safety Data Sheet (MSDS)|
|Safety Instructions of SLA Battery||Ventilation Guidelines for lead acid batteries|
|General tips for longer life||SLA Battery Charger Selection|
|Battery Handling Procedure||Terminal Details|
